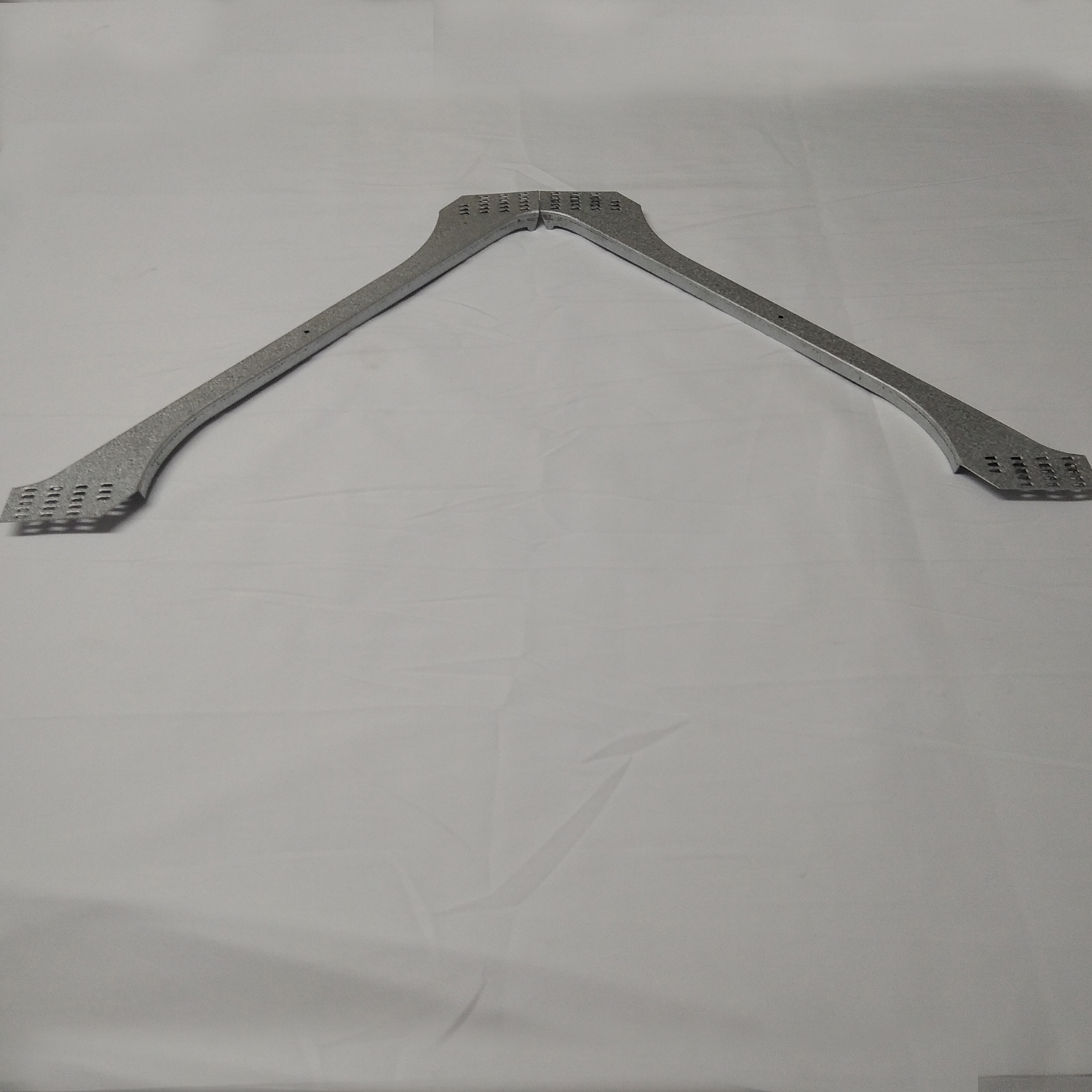

Posi Joists Factory Posi Strut Fabrication for Different Posi Joist Span Sizes
Surealong posi Joist metal web joists combine the lightness of timber with the strength of posi strut steel web for a better overall floor or roof design.
Surealong posi joists metal web joists combine the lightness of timber with the strength of posi strut steel web for a better overall floor or roof design.
posi joists – Parallel top and bottom timber chords (timber flanges), with pressed steel webs in a diagonal V pattern on one side and mirrored on the other side.The web arrangement is symmetrical relative to a plane aligned with the length and depth of the top and bottom chords, so the webs are always in pairs.
posi floor joists
|Material||1.2mm galvanized steel Z275 grade|
|Key words||posi joist span,posi truss,posijoist|
|Web Size||Web Depth||Weight per pair||Truss Weight|
|No. of teeth|
(ends or crotch)
|PS20||184mm||0.32 kg||4.85 kg/m||14/28|
|PS25||227mm||0.34 kg||5.02 kg/m||18/36|
|PS30||284mm||0.39 kg||5.28 kg/m||20/40|
|PS40||392mm||0.53 kg||5.72 kg/m||20/40|
