Galvanised Steel Tylok Plates for Trusses,formwork
tylok plate
1

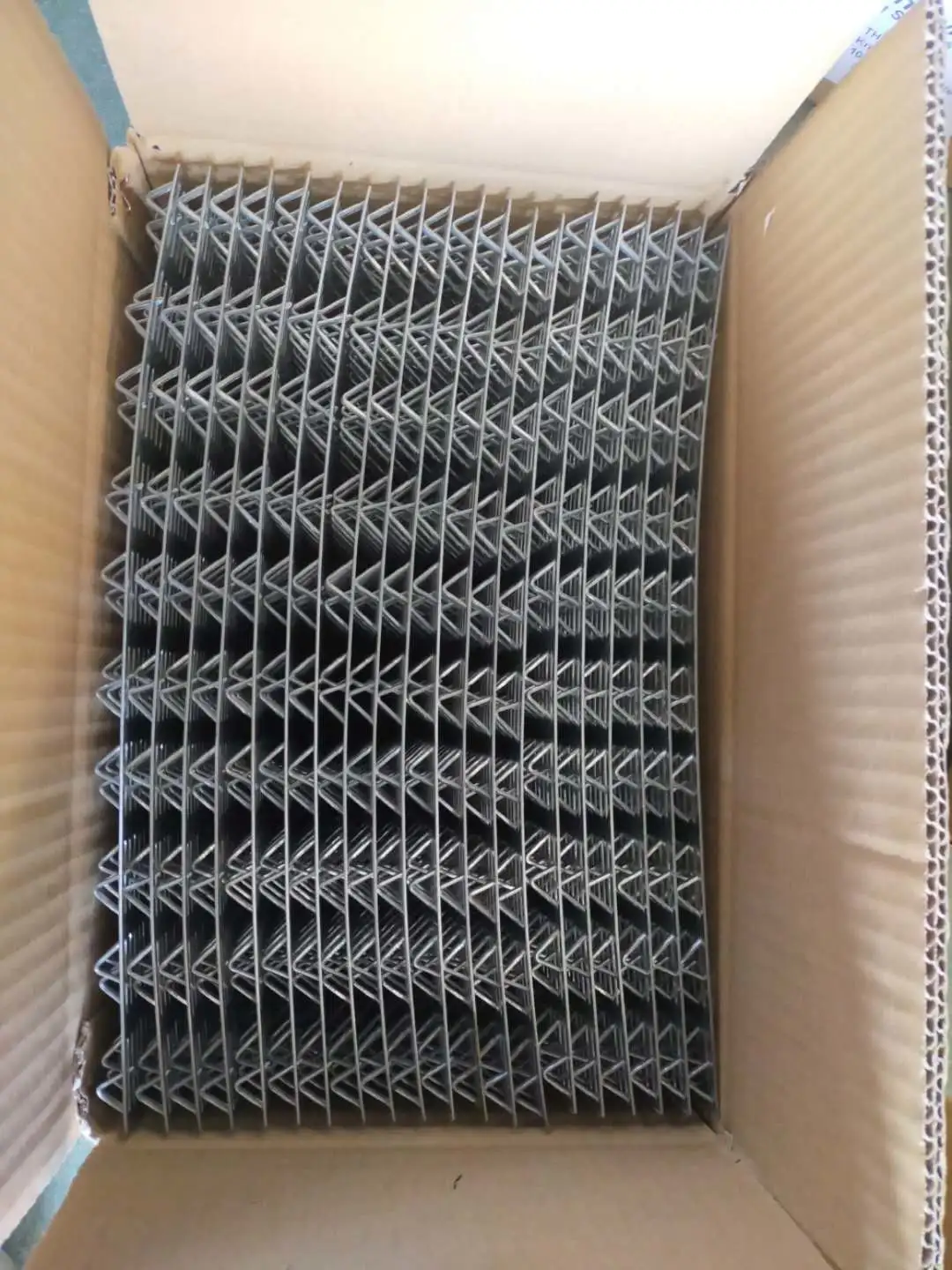

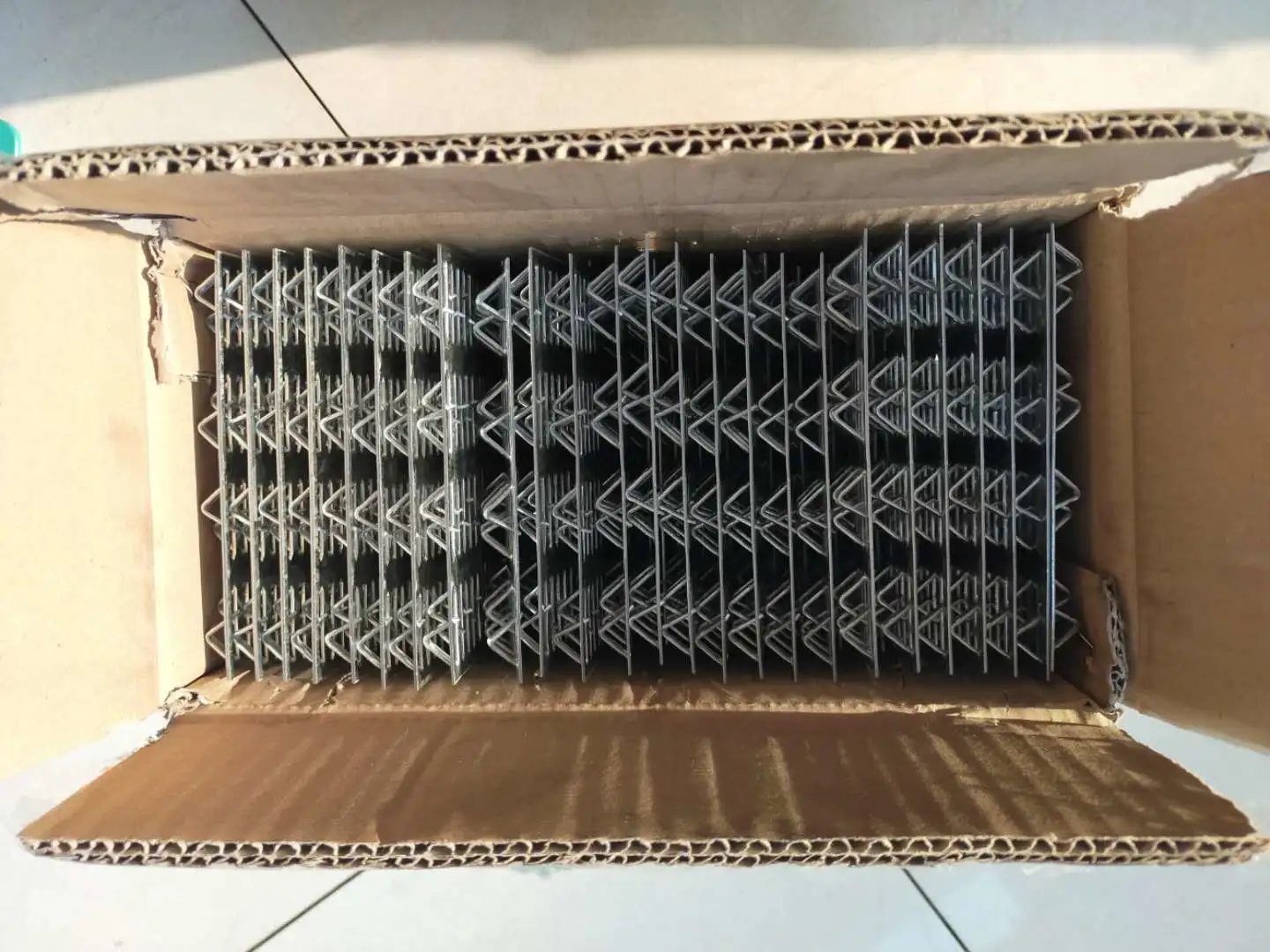

The lumberlok tylok plate is designed for on-site use and can readily be applied by hammer as well as hydraulic press. Tylok Plates are suitable for a wide range of applications such as trusses, formwork, site splicing etc. Tylok Plates are manufactured from galvanised steel in a range of sizes.
Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.
Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.
Quantity
The lumberlok tylok plate is designed for on-site use and can readily be applied by hammer as well as hydraulic press. Tylok Plates are suitable for a wide range of applications such as trusses, formwork, site splicing etc. Tylok Plates are manufactured from galvanised steel in a range of sizes.
Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.
Plate code example - 6T10 = 6 rows of teeth long x 10 teeth wide.
| Products name | lumberlok tylok plate | ||
| Material | 1.0mm G300 Z275 Galvanised Steel | ||
| Code | Width | Length |
| 2T5 | 34mm | 60mm |
| 4T5 | 34mm | 120mm |
| 6T5 | 34mm | 180mm |
| 8T5 | 34mm | 240mm |
| 10T5 | 34mm | 300mm |
| 12T5 | 34mm | 360mm |
| 14T5 | 34mm | 420mm |
| 16T5 | 34mm | 480mm |
| Coil T5 | 34mm | 15m |
| Code | Width | Length |
| 4T15 | 102mm | 120mm |
| 6T15 | 102mm | 180mm |
| 8T15 | 102mm | 240mm |
| 10T15 | 102mm | 300mm |
| 12T15 | 102mm | 360mm |
| Coil T15 | 102mm | 15m |
| Code | Width | Length |
| 2T10 | 68mm | 60mm |
| 4T10 | 68mm | 120mm |
| 6T10 | 68mm | 180mm |
| 8T10 | 68mm | 240mm |
| 10T10 | 68mm | 300mm |
| 12T10 | 68mm | 360mm |
| 14T10 | 68mm | 420mm |
| 16T10 | 68mm | 480mm |
| Coil T10 | 68mm | 15m |
| Code | Width | Length |
| 6T20 | 136mm | 180mm |
| 8T20 | 136mm | 240mm |
| 10T20 | 136mm | 300mm |
| 12T20 | 136mm | 360mm |
| 14T20 | 136mm | 420mm |
| Coil T20 | 136mm | 15m |
