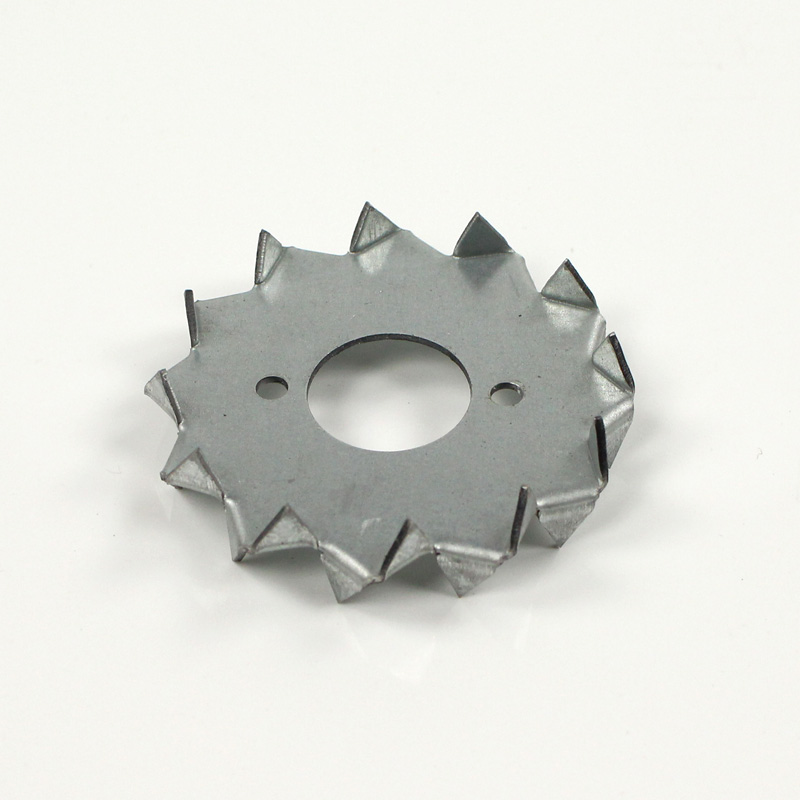

M10 Double Sided Toothed Plate Connectors
M10
1
*For joining two adjacent timbers together
*Prevents timber splitting and joint rotating
*Provides additional strength and support to between timbers
*Prevents timber splitting and joint rotating
*Provides additional strength and support to between timbers
Quantity

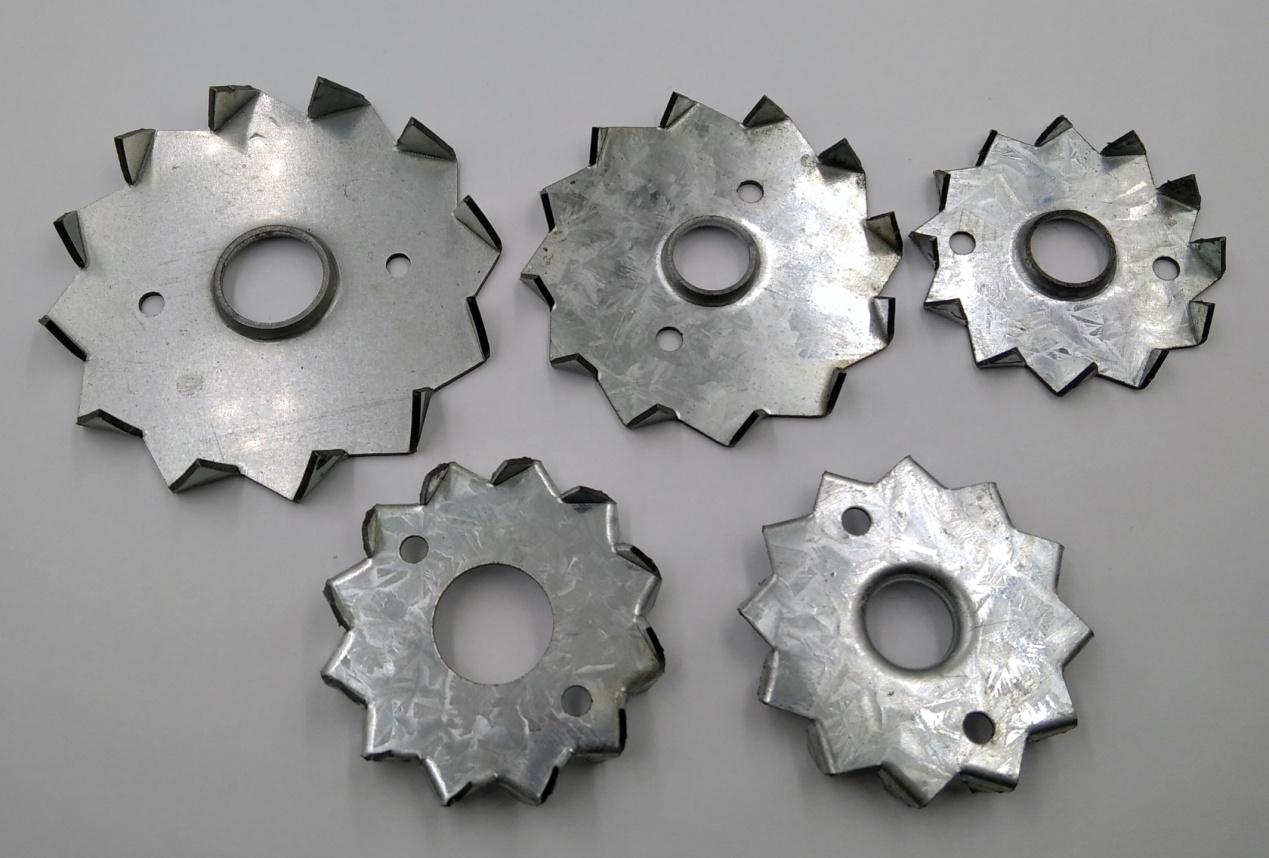

Toothed plate connector
We can supply toothed plate connector for enhanced bolt performance in timber. Conforms to BS EN 912: 1999 Annex C.
Material: Galvanized steel sheet with DX51D+Z275 grade
Type: Timber Connectors
Brand Name: Surealong
Range Description: Timber Brackets
Features & benefits
*For joining two adjacent timbers together
*Prevents timber splitting and joint rotating
*Provides additional strength and support to between timbers
Different types as below:
Specifications for toothed plate connectors

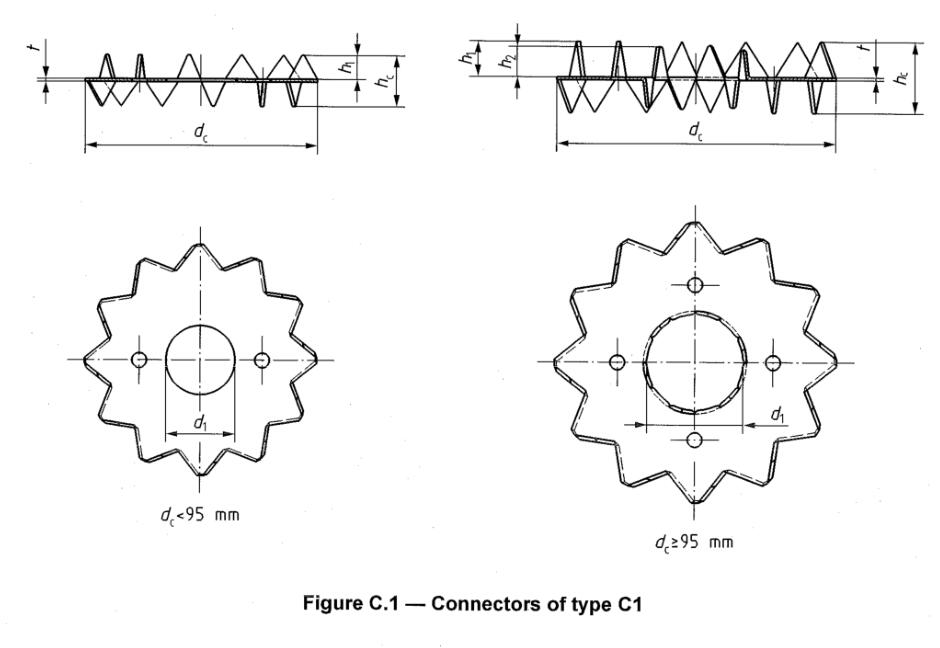

C.1 Type C1
C.1.1 Description and dimensions

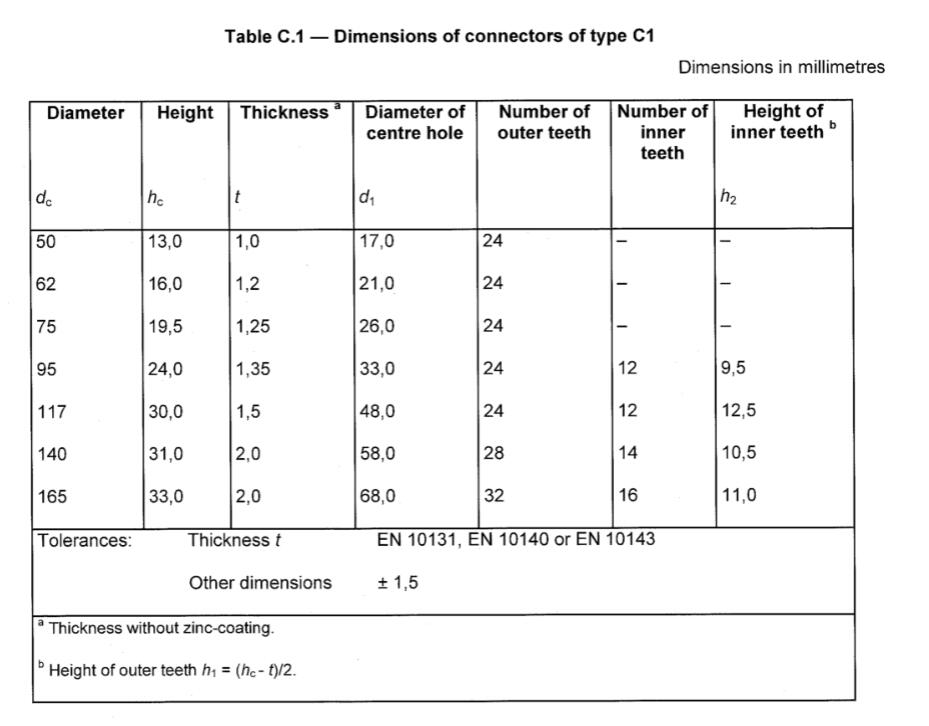

A toothed plate connector of type C1 (see Figure C.1) is a double sided timber connector made of a circular plate,the edges of which shall be cut and bent over to form triangular teeth projecting alternately from opposite faces at 90 degree to the faces. The teeth shall be evenly spaced around the perimeter of the plate and, for connectors with diameter dc >=95 mm, around the perimeter of the bolt-hole in the centre of the plate. Each plate has two nail holes between the centre of the plate and the circumference and on opposite sides of thebolt-hole. The dimensions shall comply with Table C.1.
C.2 Type C2
C.2.1 Description and dimensions

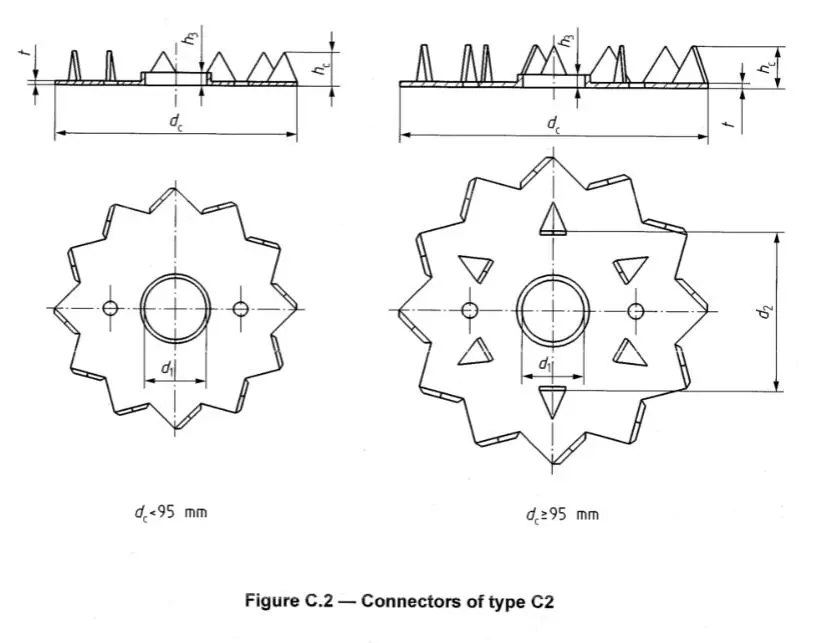

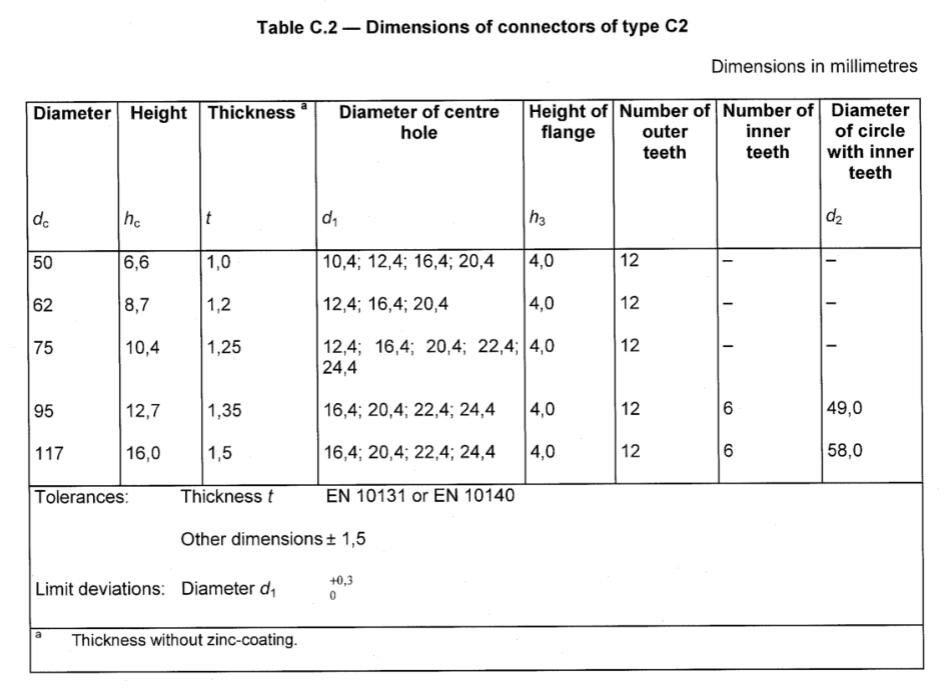

A toothed plate connector of type C2 (see Figure C.2) is a single-sided connector made of a circular plate, theedges of which shall be cut and bent over to form triangular teeth projecting from one face at 90 to the face.The teeth shall be evenly spaced around the perimeter of the plate and, for connectors with diame-ter d, > 95 mm, additionally between the perimeter of the plate and the bolt-hole in the centre of the plate.Around the bolt-hole there is a flange projecting from the same face as the teeth. Each plate has two nailholes through the plate, between the centre of the plate and the circumference and on opposite sides of thebolt-hole. The dimensions shall comply with Table C.2.
C.6 Type C6
C.6.1 Description and dimensions

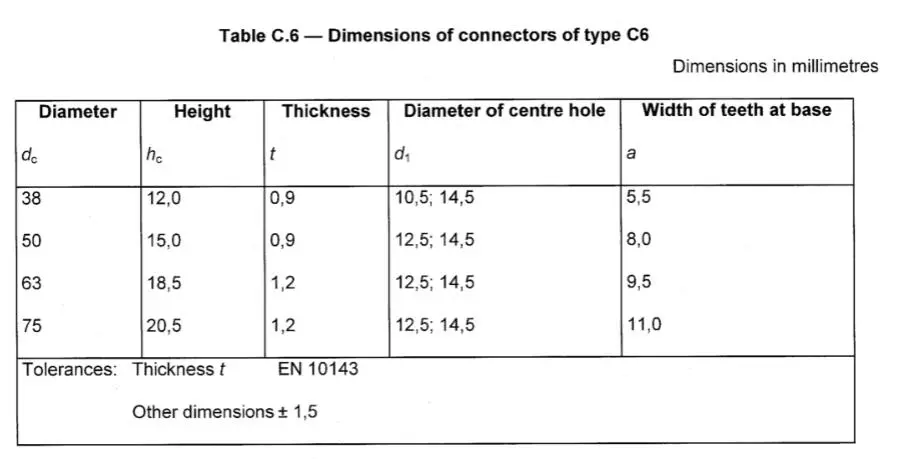

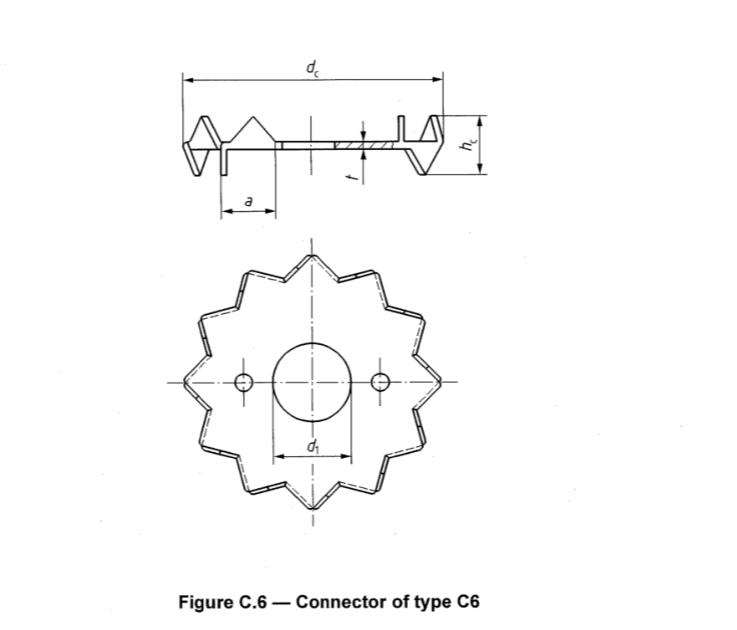

A toothed plate connector of type C6 (see Figure C.6) is a double sided toothed connector made of a circular platewith a bolt-hole through the centre. Two nail holes may be drilled midway between the centre and thecircumference and on opposite sides of the bolt-hole. The edges of the plate are cut and bent over to form24 triangular teeth spaced evenly around the perimeter and projecting altermately from opposite faces at 90° tothe faces. The dimensions shall comply with Table C.6.
C.7 Type C7
C.7.1 Description and dimensions

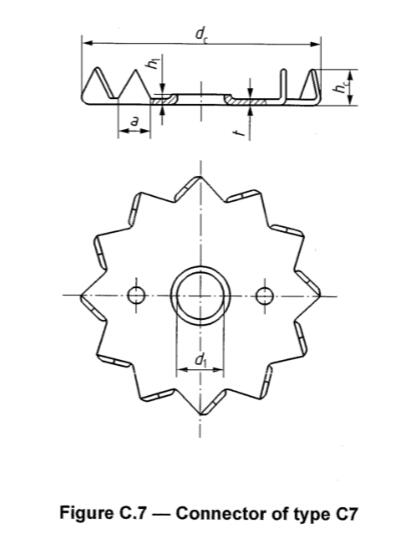

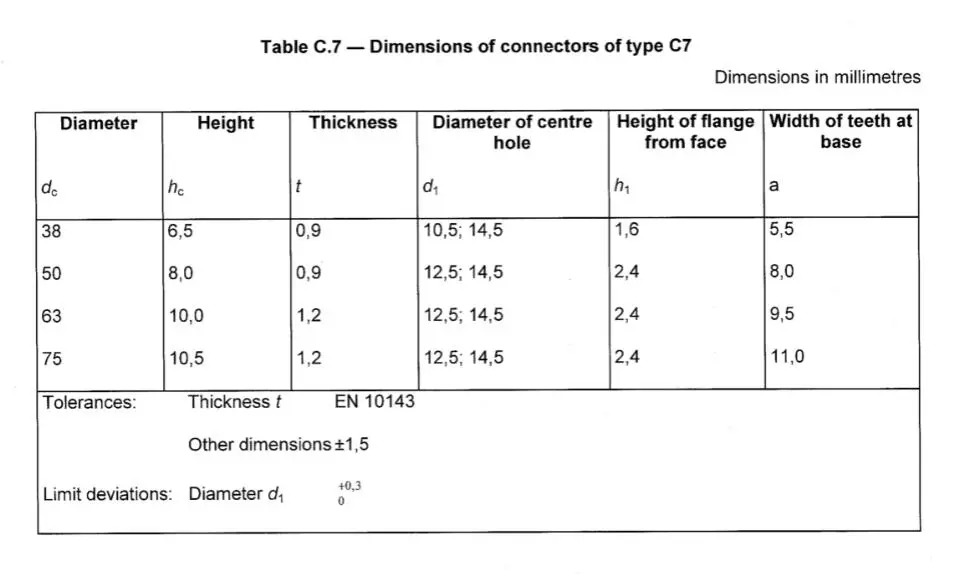

A toothed plate connector of type C7 (see Figure C.7) is a single-sided connector made of a circular plate witha bolt-hole through the centre. Two nail holes may be drilled midway between the centre and thecircumference and on opposite sides of the bolt-hole. The edges of the plate are cut and bent over to form12 triangular teeth spaced evenly around the perimeter and projecting from one face at 90° to the face.Around the bolt-hole there is a flange projecting from the same face as the teeth. The dimensions shall complywith Table C.7.
