Transform your outdoor living space with our pergola bracket kit just cut the wood with your desired length and you're good to go.
It's tough to find a pergola kit that's totally modular and has the ability to fit the size of any space. With the SUREALONG Pergola Kit, those days are over.
It's tough to find a pergola kit that's totally modular and has the ability to fit the size of any space. With the SUREALONG Pergola Kit, those days are over.
Quantity

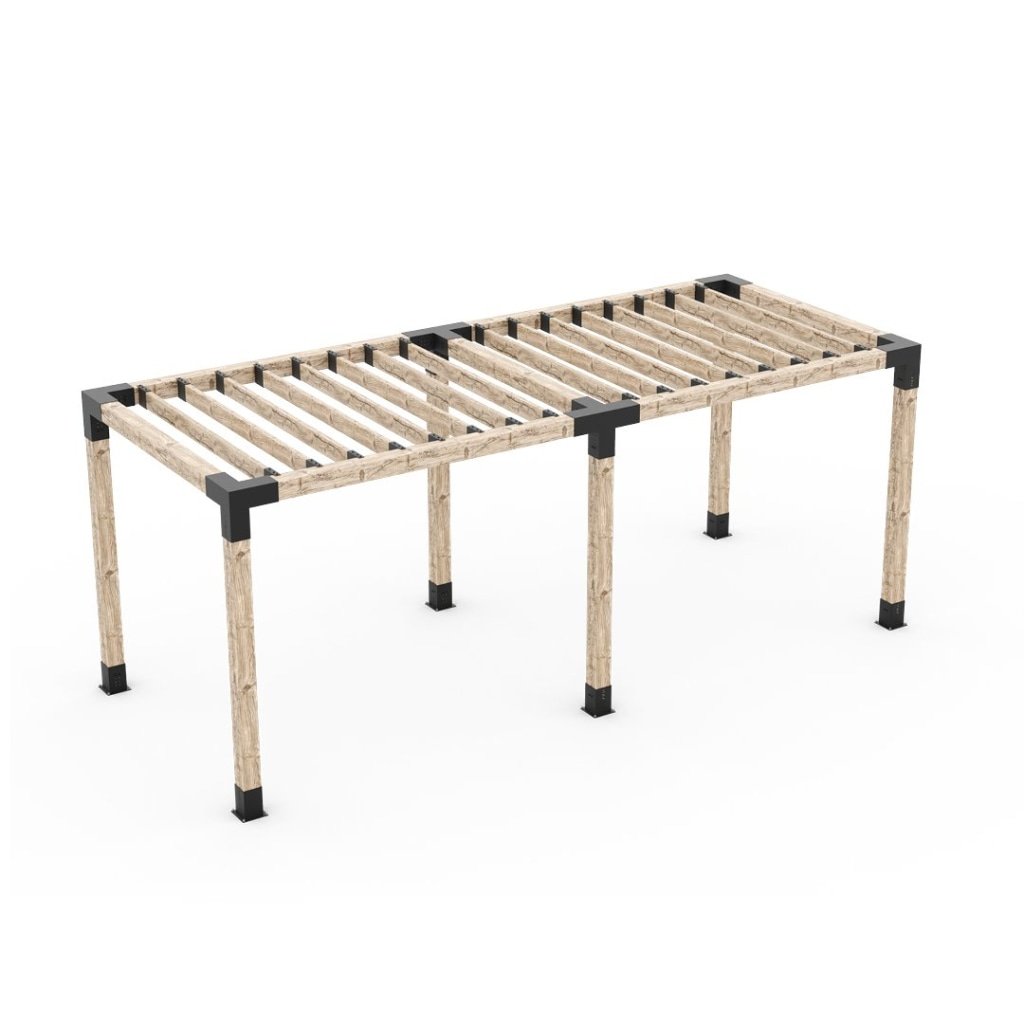

Transform your outdoor living space with our pergola bracket kits just cut the wood with your desired length and you're good to go.
It's tough to find a pergola bracket kits that's totally modular and has the ability to fit the size of any space. With the SUREALONG Pergola Kit, those days are over.
pergola bracket kits include pergola corner brackets,post base,mounting brackets
It's tough to find a pergola bracket kits that's totally modular and has the ability to fit the size of any space. With the SUREALONG Pergola Kit, those days are over.
pergola bracket kits include pergola corner brackets,post base,mounting brackets
| Item Name | Specification |

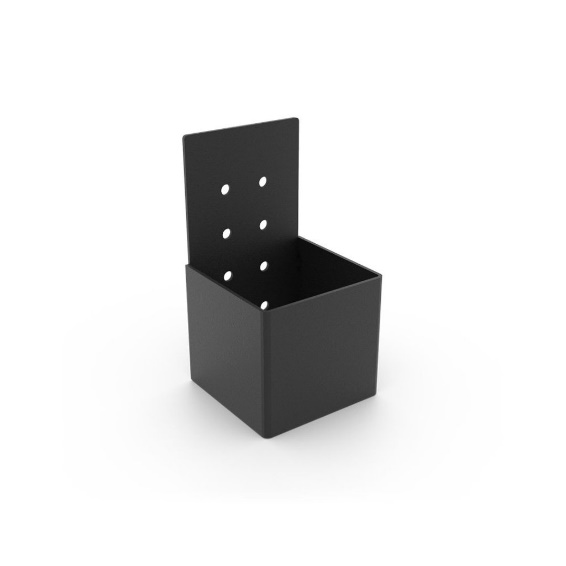

| Pergola Post Base and Wall Mount Bracket | for 4”x4” Wood Posts Gauge: 14-gauge Steel Overall Size (1 Pc.): LxWxH: 6”x6”x7” Color: Black Weight (1 Pc.): 5 lbs. Fastening Holes: 0.25” Flange: 1” Securing Holes: 0.375” |
| for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc.): LxWxH: 8”x8”x9” Color: Black Weight (1 Pc.): 8 lbs. Fastening Holes: 0.25” Flange: 1” Securing Holes: 0.5” | |
| 3 Arm Pergola Corner Bracket | for 4”x4” Wood Posts Gauge: 14-gauge Steel Overall Size (1 Pc.): LxWxH: 10.75 x 10.75 x 10.75” Colour: Black Weight (1 Pc.): 8.5 lbs. Fastening Holes: 0.25” Securing Holes: 0.5 |
| for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc.): LxWxH: 14.75” x 14.75” x 14.75” Colour: Black Weight (1 Pc.): 25 lbs. Fastening Holes: 0.25” Securing Holes: 0.5” | |
| 4 Arm Pergola Extension Brackets | for 4”x4” Wood Posts 14-gauge Steel Overall Size (1 Pc. QUAD): LxWxH: 17.75 x 10.75 x 10.75” Colour: Black Weight (2 QUAD + 2 SOLO): 27 lbs. Fastening Holes: 0.25” |
| for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc. QUAD): LxWxH: 23.69” x 14.75” x 14.75” Colour: Black Weight (1 QUAD): 30 lbs. Fastening Holes: 0.25” | |
| 5 Arm Pergola Structure Extension Bracket for 4x4 Wood Posts | for 4”x4” Wood Posts 14-gauge Steel Overall Size (1 Pc. QUAD): LxWxH: 17.75 x 10.75 x 10.75” Colour: Black Weight (2 QUAD + 2 SOLO): 27 lbs. Fastening Holes: 0.25” |
| for 6”x6” Wood Posts Gauge: 12-gauge Steel Overall Size (1 Pc. QUAD): LxWxH: 23.69” x 14.75” x 14.75” Colour: Black Weight (1 QUAD): 30 lbs. Fastening Holes: 0.25” |
| Item Name | Specification | Picture | Usage |
| Pergola Post Wall and Railing Bracket for 4x4 Wood Posts | for 4”x4” Wood Posts Arm Opening (Interior): 3.61” x 3.61” Arm Opening (Exterior): 3.75” x 3.75” Arm Length: 4” Gauge: 12-gauge Steel | ||
| for 6”x6” Wood Posts Arm Opening (Interior): 5.62” x 5.62” Arm Opening (Exterior): 5.828” x 5.828” Arm Height: 6” Gauge: 12-gauge Steel | |||
| Hanger | for 4”x4” Wood Posts Arm Opening (Interior): 3.61” x 3.61” Arm Opening (Exterior): 3.75” x 3.75” Gauge: 12-gauge Steel | ||
| for 6”x6” Wood Posts Arm Opening (Interior): 5.62” x 5.62” Arm Opening (Exterior): 5.828” x 5.828” Gauge: 12-gauge Steel | |||

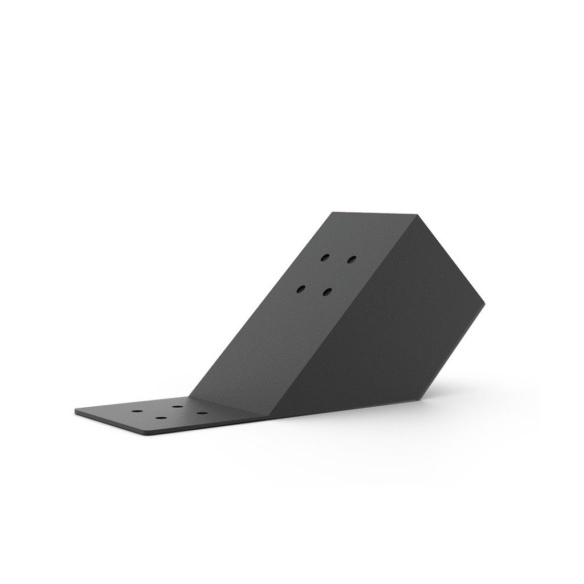

| 45 Degree Knee Bracket | for 4”x4” Wood Posts Arm Opening (Interior): 3.61” x 3.61” Arm Opening (Exterior): 3.75” x 3.75” Gauge: 12-gauge Steel | ||
| for 6”x6” Wood Posts Arm Opening (Interior): 5.62” x 5.62” Arm Opening (Exterior): 5.828” x 5.828” Gauge: 12-gauge Steel | |||
| Pergola Top Rafter Bracket | for 2”x4” Wood Posts Arm Opening (Interior): 1.61” x 3.61” Arm Opening (Exterior):1.75” x 3.75” Gauge: 12-gauge Steel | ||
| for 2”x6” Wood Posts Arm Opening (Interior): 1.61” x 5.62” Arm Opening (Exterior): 2.75” x 5.828” Gauge: 12-gauge Steel | |||
| for 2”x8” Wood Posts Arm Opening (Interior): 1.61” x 7.36” Arm Opening (Exterior): 2.75” x 7.5” Gauge: 12-gauge Steel |
