Metal Web Floor Joists

Metal Web Floor Joists

Model NO. Metal Web Joists

Metal web or Posi joist systems are a combination of timber chords and pressed metal webs which together form an 'open-web' joist. Their open web design allows for the installation of services such as pipework, cabling, mechanical heat recovery systems and other services to be passed through the metal webs without the need for notching or drilling. Posi Joists also reduce site wastage and are environmentally sustainable.

Quantity

Contact Now add to cart

Metal web or Posi joist systems are a combination of timber chords and pressed metal webs which together form an 'open-web' joist. Their open web design allows for the installation of services such as pipework, cabling, mechanical heat recovery systems and other services to be passed through the metal webs without the need for notching or drilling. Posi Joists also reduce site wastage and are environmentally sustainable.

Metal Web Joists

Products name	metal web floor joists
Material	1.2mm G300 Z275 Galvanised Steel
Key words	web truss joist,metal web floor trusses

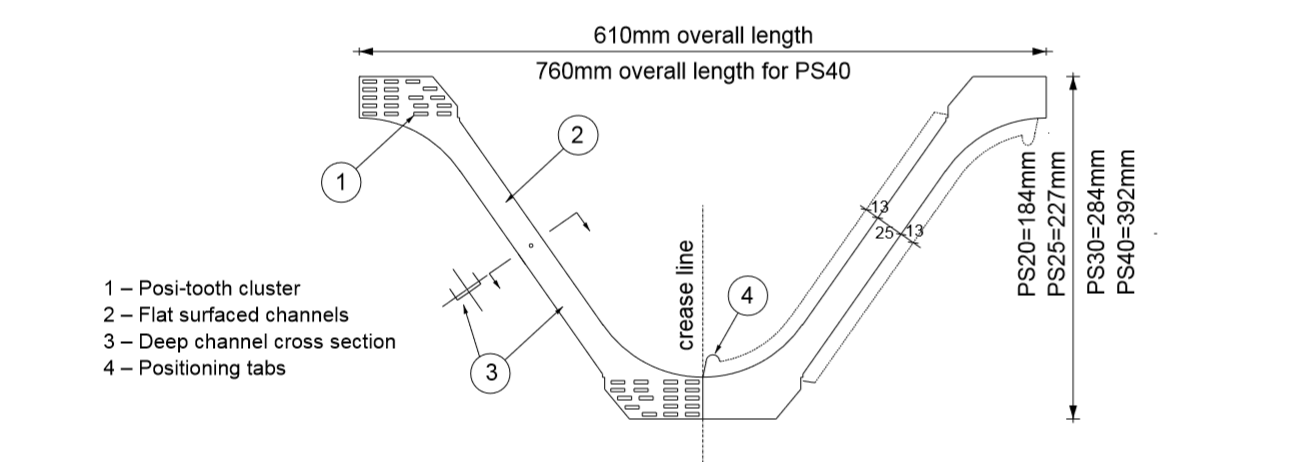

Metal Web Joists Specification

Web Size	Web Depth	Weight per pair	Truss Weight (90x45 chords)	No. of teeth (ends or crotch)
PS20	184mm	0.32 kg	4.85 kg/m	14/28
PS25	227mm	0.34 kg	5.02 kg/m	18/36
PS30	284mm	0.39 kg	5.28 kg/m	20/40
PS40	392mm	0.53 kg	5.72 kg/m	20/40

POSI-STRUT METAL WEB SYSTEM

Metal Web Beams
Metal web beams are outperforming many of the common floor systems today. Not only for their load-bearing qualities and span potential but also due to the easy installation and manipulation of services through the open joist that is designed for beam stability and strength. Metal web beams are quick and easy to install, reducing labour time and costs.

Rapid installation
Increased span capacity
Open Web Surface – complete flexibility for service runs
Wide bearing surface – easy fixing of flooring and plasterboarding
Engineering service – layout drawings and design calculations
Made-to-measure – no waste on site
ISO9001 quality systems assurance and controlled manufacture
Complete package – everything you need
If you want to know metal web joists prices,contact with Us please.
