Description

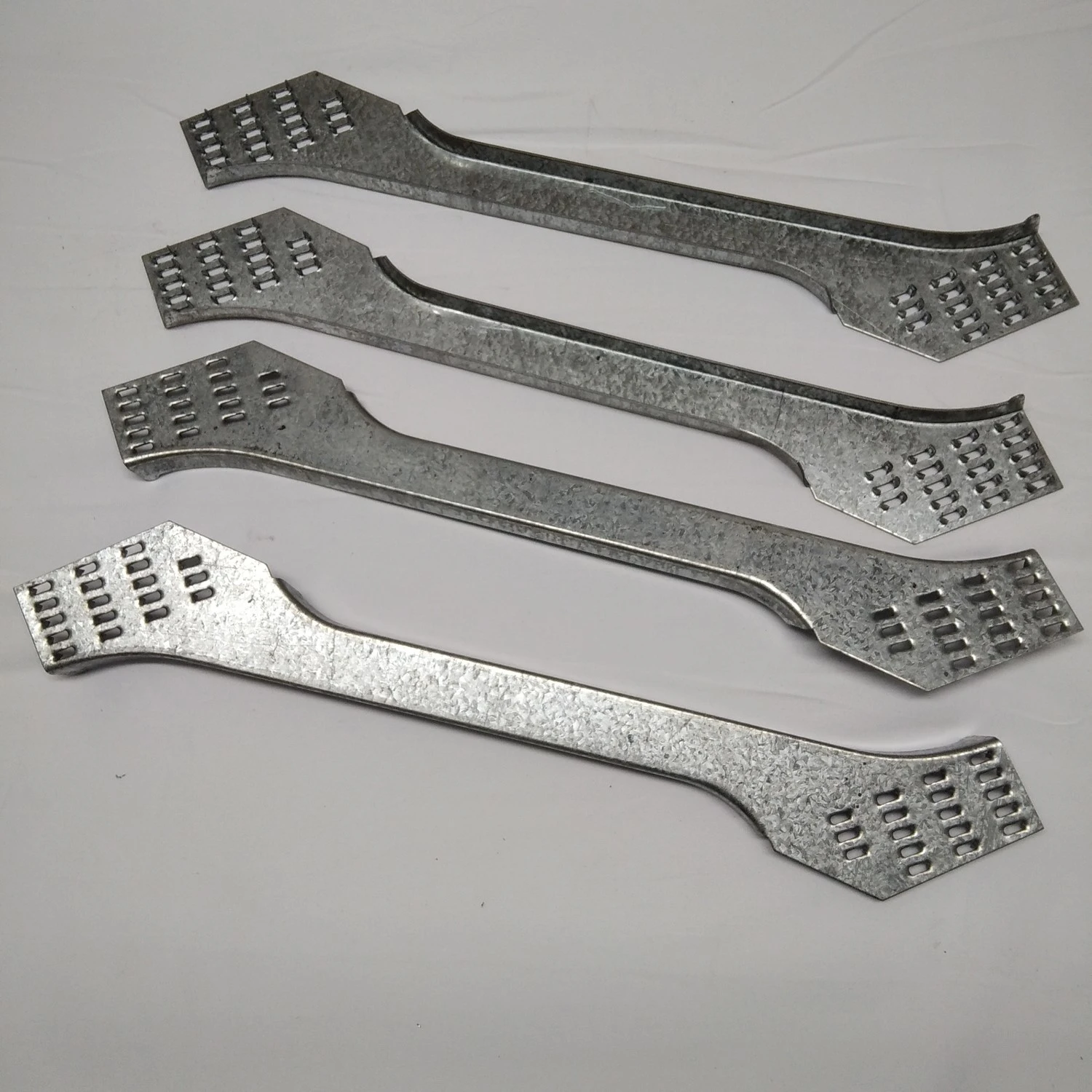

Name:Metal Web Joists

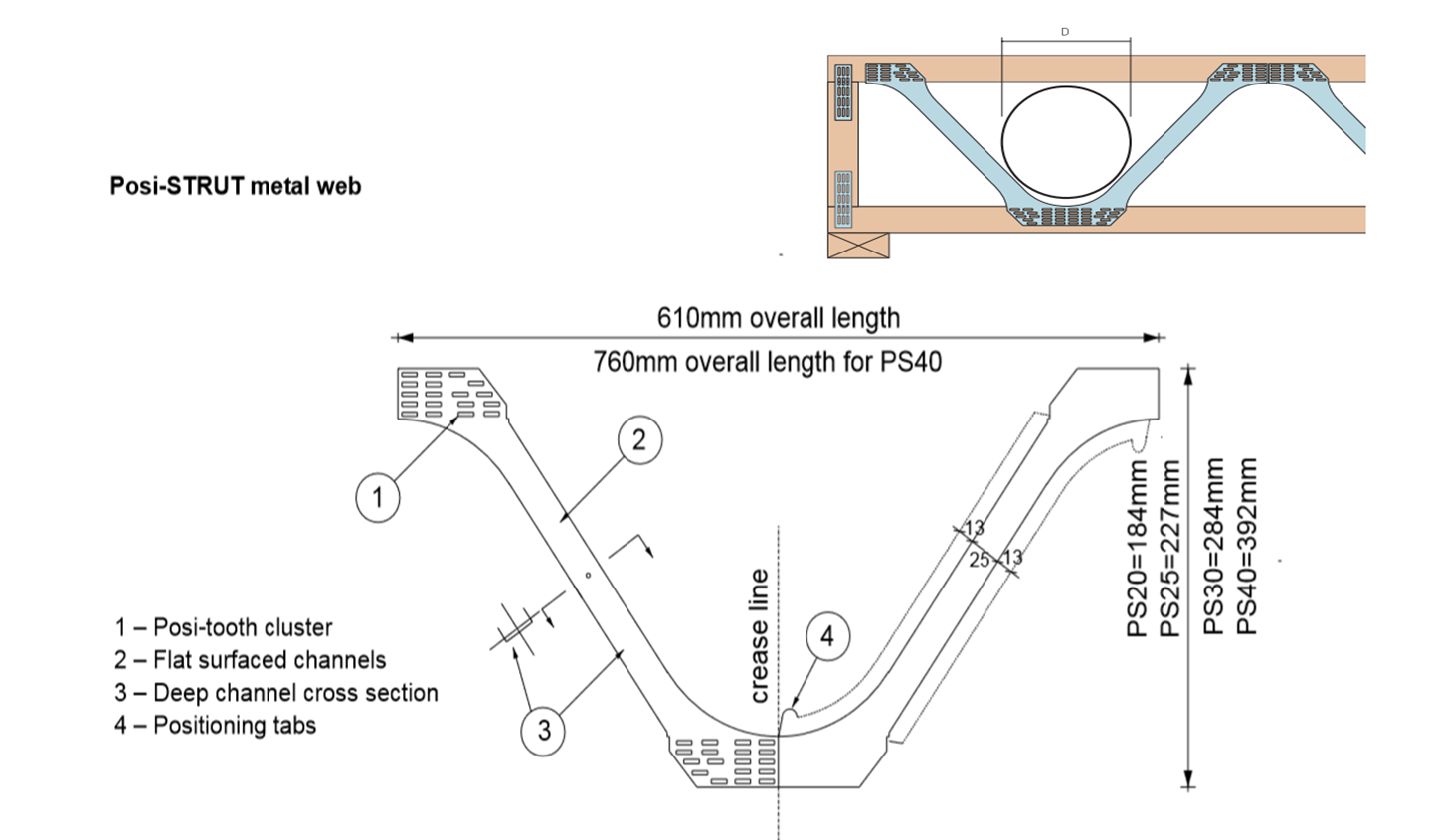

Specification：PS20-PS25-PS30-P40（See Drawing）
Material：Galvanized Steel DX51D-Z275-1.2mm
SUREALONG Metal Web Joists System Advantage
OPEN WEB DESIGN
This allows for easier more practical installation of services including waste water pipes,
electrical cabling, heating pipes and other services. Also, no hole locating or drilling,
limits any possibility of incorrect workmanship and reduces labour costs.
LIGHT WEIGHT
The combination of smaller timber sections with the light weight metal web means
the finished product is lighter than it’s timber equivalents.
HANDLING AND INSTALLATION
The large bearing surface allows for speedy setting out of joists,
improves joist stability when laying out joists and enables easier fixing of decking materials.
LONG-TERM STABILITY
The reduced sections used in the manufacture of the metal web means less shrinkage
is experienced meaning a quieter and longer lasting floor system.
IMPROVED SOUND AND VIBRATION
The metal web floor system allows for the installation of a rigid Strongback
that reduces vibration and improves the overall performance of the floor.
Name:Metal Web Joists
Specification：PS20-PS25-PS30-P40（See Drawing）
Material：Galvanized Steel DX51D-Z275-1.2mm
SUREALONG Metal Web Joists System Advantage
OPEN WEB DESIGN
This allows for easier more practical installation of services including waste water pipes,
electrical cabling, heating pipes and other services. Also, no hole locating or drilling,
limits any possibility of incorrect workmanship and reduces labour costs.
LIGHT WEIGHT
The combination of smaller timber sections with the light weight metal web means
the finished product is lighter than it’s timber equivalents.
HANDLING AND INSTALLATION
The large bearing surface allows for speedy setting out of joists,
improves joist stability when laying out joists and enables easier fixing of decking materials.
LONG-TERM STABILITY
The reduced sections used in the manufacture of the metal web means less shrinkage
is experienced meaning a quieter and longer lasting floor system.
IMPROVED SOUND AND VIBRATION
The metal web floor system allows for the installation of a rigid Strongback
that reduces vibration and improves the overall performance of the floor.
| Web Size | Web Depth | Diameter Pipe | Weight of Web | No.of teeth (ends/crotch) |
| PS20 | 184mm | 100 | 0.15kg | 12/24 |
| PS25 | 227mm | 150 | 0.17kg | 18/36 |
| PS30 | 284mm | 200 | 0.2kg | 18/36 |
| PS40 | 392mm | 280 | 0.26 | 20/40 |
